Detail
Model | B1022 B1022W | B1522 B1522W | B2022 B2022W | B1027 B1027W | B1527 B1527W | B2027 B2027W | |
|---|---|---|---|---|---|---|---|
| Standard | GB7247.1/4/13、EN60825-1/4、IEC60825-1/13 | ||||||
| Protective Exposure Limit | PEL=1645.2W/cm², test wavelength 1070nm, spot diameter 3mm, test time T=100s | ||||||
| Laser Type | All types of lasers from 190 to 11000nm | ||||||
| Laser Damage Phenomenon | Produce white smoke | ||||||

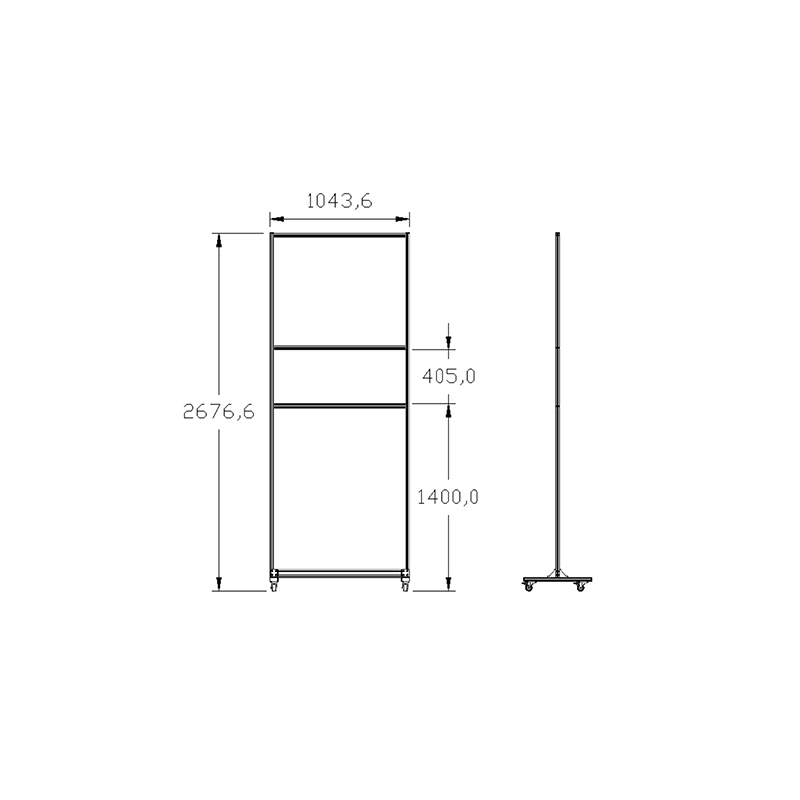

| Size(L×H) | 1.04×2.18m | 1.54×2.18m | 2.04×2.18m | 1.04×2.68m | 1.54×2.68m | ||
| Laser Safety Window | Ordered Separately | ||||||
| Linked Switch | Ordered Separately（Type：GLS-M1 & GLS-S1） | ||||||
| Materials | 3mm or 4mm thick black aluminum plate + black aluminum profile frame | ||||||
| Feature | Maintenance-free, high strength, light weight, low reflection, aging resistance, corrosion resistance | ||||||
| Applicable Place | 4 types of laser protection places, laser laboratories, laser equipment, laser processing workshops | ||||||
| Installing Form | Free movement, can be spliced to form a "I", "L", "U" and "O" shape | ||||||
