Details
table-show
| PAPR Type | HXQ-9001 | |
|---|---|---|
| Executive Standard | EN12941:2023 Niosh 42 CFR Part 84 GB 30864-2014 |
|
| Operating Temp. | -5℃～55℃ | |
| PAPR Net Weight | 1100g | |
| Airflow Rate(L/Min) | 1Level：150/2Level：180/3Level：210 | |
| Noise | ≤73dB | |

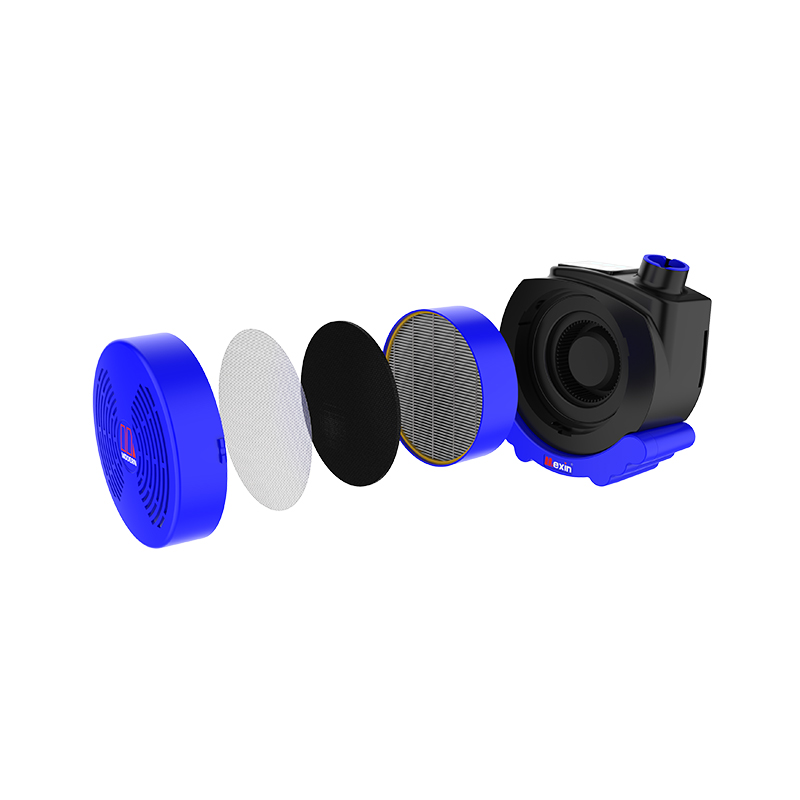

| Filter | Model Number | 600604000307-1 |
| Filter Fineness | 0.3um | |
| Filter Efficiency | ＞97%，TH1 | |
| Validity Period | 3 years | |
| Air pipe | Model | Ø35mm |
| Length | 0.8m | |
| Material | PU | |
| Battery | Rated Capacity of Battery | 6600mAH |
| Battery Voltage | DC8.4V | |
| Running Hour | 150L/Min：>15H 180L/Min：>11H 210L/Min：>9H |
|
| Charge and Discharge Times | ＞500 | |
| Charge | Input power | AC100～240V |
| Charge Time | 5H | |
| Output Power | DC8.4V/3A | |
| Packing Size | Carton of Respirator | 305*235*248mm |
| Carton of Welding Helmet | 305*325*248mm | |
| Packing Size | 580*324*270mm | |
Large Battery, Long Battery Life：The battery capacity is up to 6600mAH, which can meet most production needs.
Auto-alarm System：Flashing indicator, bleeping sound together with vibrating blower to ensure safety.
Intelligent Air Supply：Respirator will self-adjust the flow rate according to the blockage of the filter automatically.

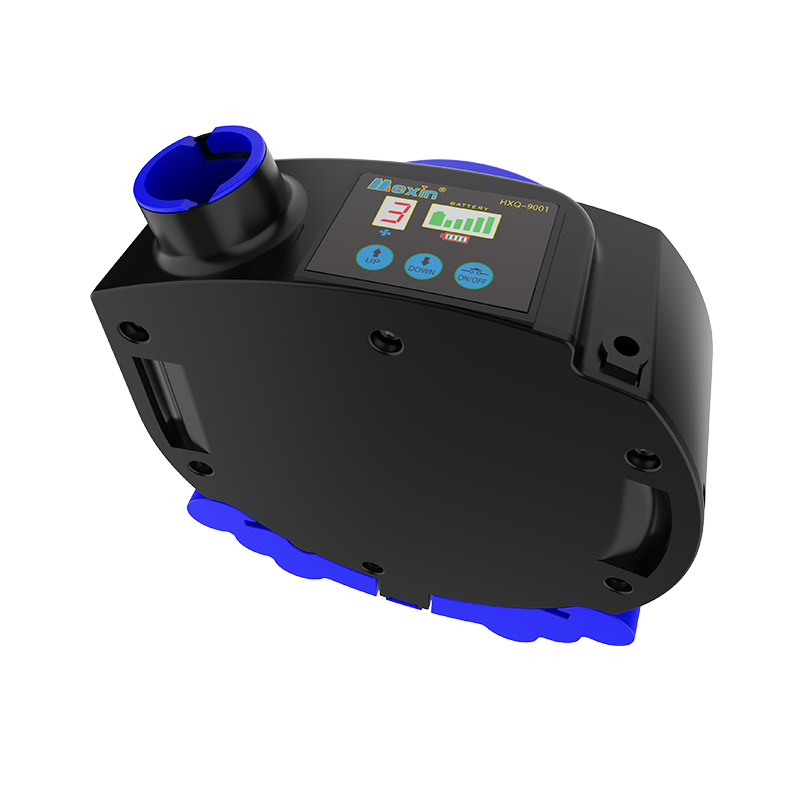

Real-time Display Indicator：Filter status/airflow rate/battery capacity indicator, real-time monitoring and displaying.
USB Output Function：When the user's phone is out of power, it can temporarily charge the phone.

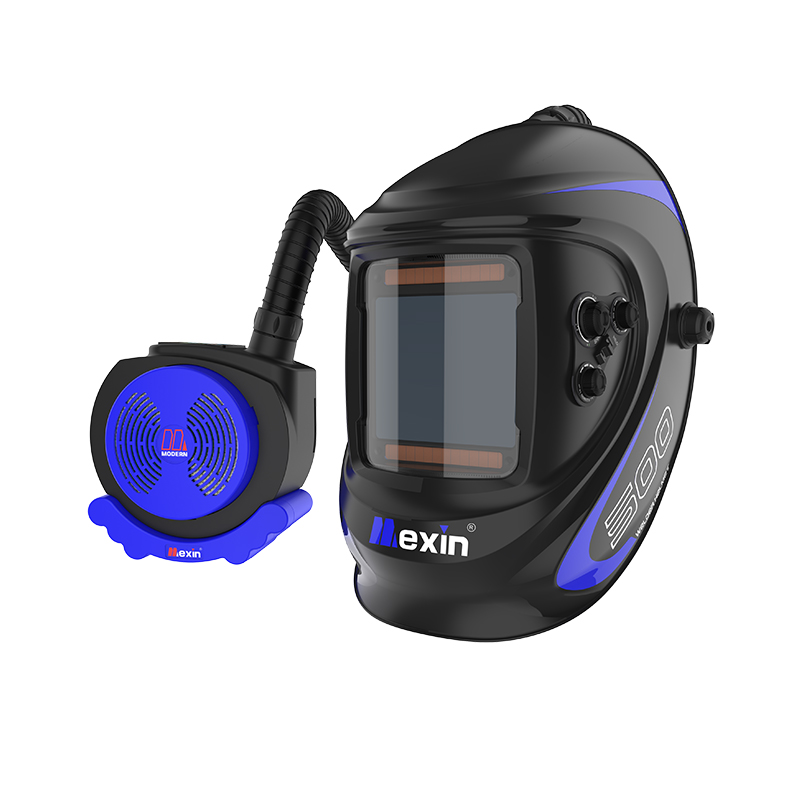

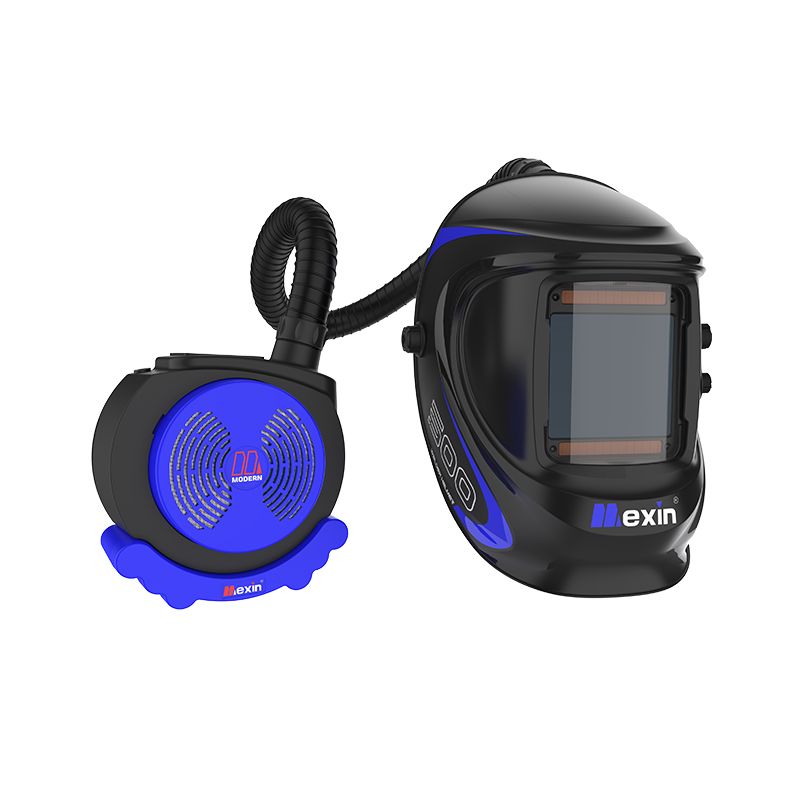

Suitable for All Kinds of Welding Helmets：According to user's preferences, it is suitable for all kinds of our welding helmets.
