Details

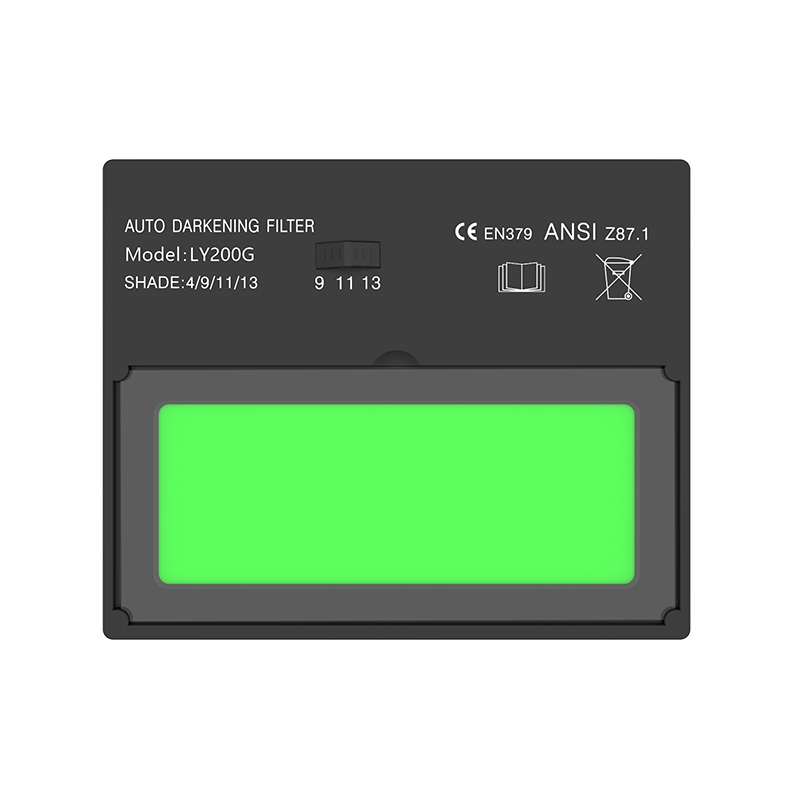

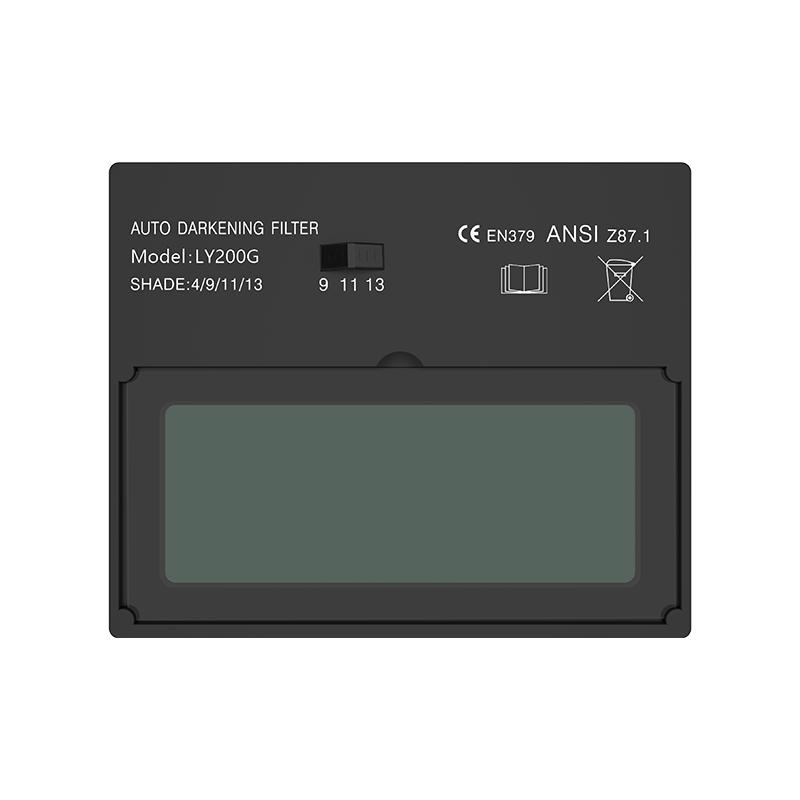

ADF Model | LY200G | |||
|---|---|---|---|---|
| Optical Class | × | × | 1/1/1/2 or 1/1/1/1 | |
| Cartridege Size | 110×90×9mm | 110×90×9mm | 110×90×9mm | |
| Viewing Area | 90×34mm(3.54"×1.34") | 90×34mm(3.54"×1.34") | 92.5×42.5mm(3.64"×1.67") | |
| Light State | DIN4 | DIN4 | DIN3.5 | |
| Dark State | DIN9/11/13 | DIN9/11/13 | DIN9～13 | |
| Shade Control | Internal & Switch | Internal & Switch | Internal & Stepless | |
| Switching Time | 3/10000S±20% | 3/10000S±20% | 3/10000S±20% | |
| Sensitivity Control | No | No | Internal & Stepless | |
| Delay Time | 0.2S | 0.2S | 0.1S～1S | |
| Power Supply | Li-battery & Solar | 2╳7# Alkaline battery | Li-battery & Solar | |
| Rated Capacity Of Li-Battery | 600mAh | × | 600mAh | |
| Replaceable Battery | No | Yes | No | |
| Operating Temp. | -5℃～55℃ | -5℃～55℃ | -5℃～55℃ | |
| Storing Temp. | -20℃～70℃ | -20℃～70℃ | -20℃～70℃ | |
| Arc Sensor | 2 | 1 | 2 | |
| Low Amperage TIG Rated | ≥30amps | ≥30amps | ≥5amps | |
| Helmet Material | PA or PP | PA or PP | PA or PP | |
| UV/IR Protection | DIN13 | DIN13 | DIN13 | |
| Test | No | No | No | |
| Low Battery | No | No | No | |
| Grinding | No | No | No | |
| Cuting | No | No | No | |
| LED | No | No | No | |
