Details
ADF Model | LY200C | |
|---|---|---|
| Optical Class | X | |
| Cartridege Size | 108mm×51mm×5.5mm | |
| Viewing Area | 90mm×34mm ( 3.54” x 1.34” ) | |
| Light State | DIN4 | |
| Dark State | DIN8.5～12.5 | |
| Shade Control | External & Stepless | |
| Switching Time | 3/10000S±20% | |
| Sensitivity Control | No | |
| Delay Time | 0.2S | |
| Power Supply | Li-battery & Solar | |
| Rated Capacity Of Li-Battery | 600mAh | |
| Replaceable Battery | No | |
| Operating Temp. | -5℃～55℃ | |
| Storing Temp. | -20℃～70℃ | |
| Arc Sensor | 2 | |
| Low Amperage TIG Rated | ≥30amps | |
| Helmet Material | PA or PP | |
| UV/IR Protection | DIN13 | |
| Test | No | |
| Low Battery | No | |
| Grinding | No | |
| Cuting | No | |
| LED | No | |
Premium Arc Sensors：This product builds two arc sensors inside, each sensor can work independently and detect welding arcs easily.The arc sensor focuses on the welding arcs without any interference from surroundings.
Shade Range 9-13：For most welding applications, convenient and fast.
Well-adapted：With 2 independent sensors, allows users to weld in complex environment.

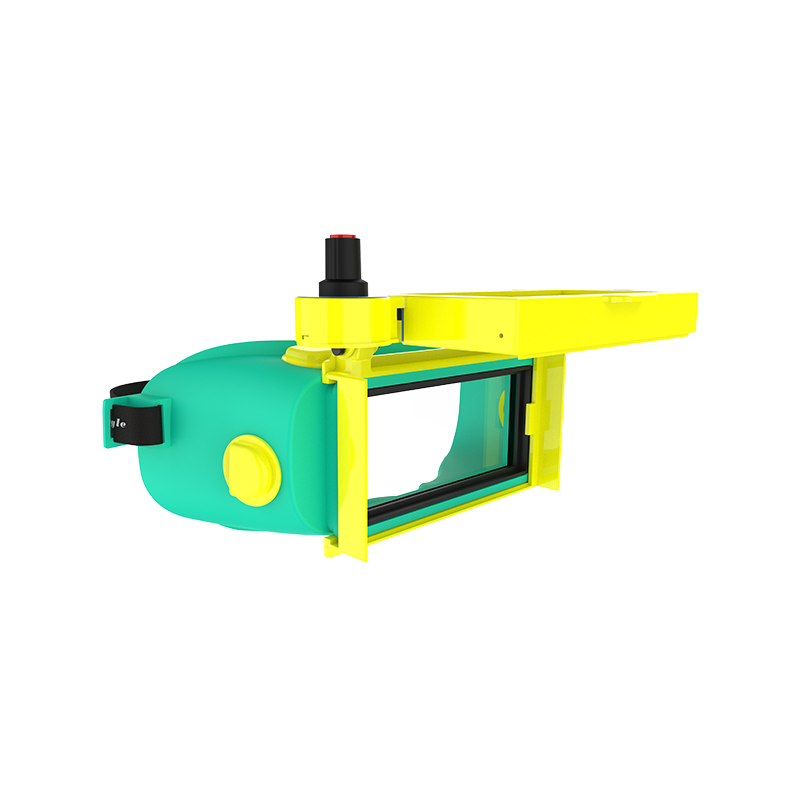

Flip up Design：Easy to lift up for grinding function, safe and clear.
Recommend Auto Darkening Filter
PACKAGING & SHIPPING
1) Wrap the glasses in a plastic bag
2) Put the manual into the color box
3) Put the glasses wrapped in plastic bag into the color box
4) Put 40Pcs of glasses in color boxes into the master carton
