Details

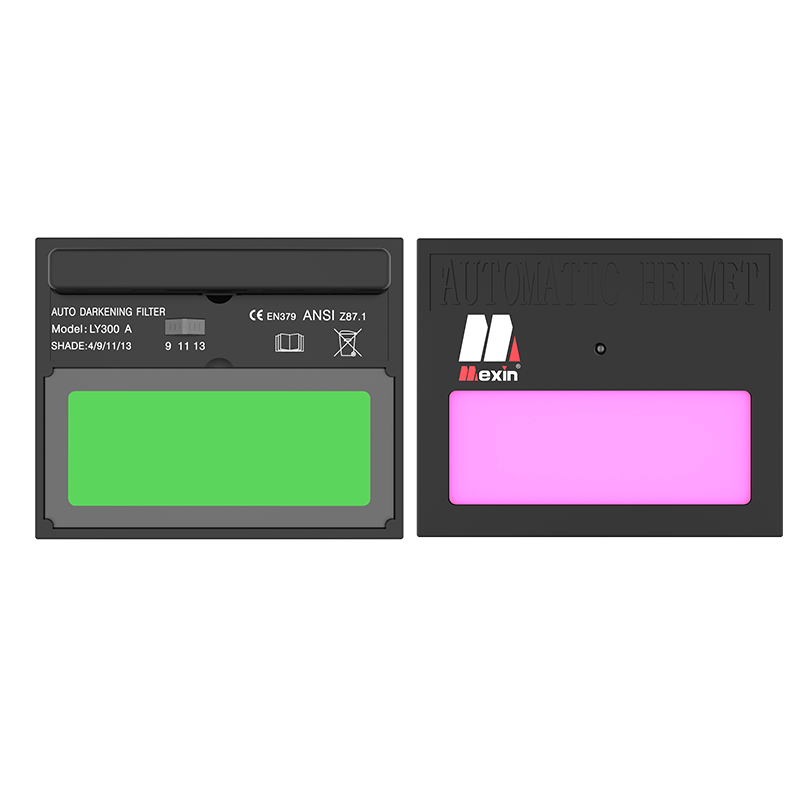

ADF Model | LY300 | LY500 | |
|---|---|---|---|
| Optical Class | × | 1/1/1/2 or 1/1/1/1 | |
| Cartridege | 110mm×90mm×9mm | 110mm×90mm×9mm | |
| Viewing Area | 90×34mm(3.54"×1.34") | 100×50mm(3.94"×1.97") | |
| Light State | DIN4 | DIN3.5 | |
| Dark State | DIN9/11/13 | DIN9～13 | |
| Shade Control | Internal & Switch | External & Stepless | |
| Switching Time | 3/10000S±20% | 3/10000S±20% | |
| Sensitivity Control | No | Internal & Stepless | |
| Delay Time | 0.2S | 0.1S～1S | |
| Power Supply | 2╳7# Alkaline battery | Li-battery & Solar | |
| Rated Capacity Of Li-Battery | - | 420mAh | |
| Replaceable Battery | Yes | Yes | |
| Operating Temp. | -5℃～55℃ | -5℃～55℃ | |
| Storing Temp. | -20℃～70℃ | -20℃～70℃ | |
| Arc Sensor | 1 | 2 | |
| Low Amperage TIG Rated | ≥30amps | ≥5amps | |
| Helmet Material | PA or PP | PA or PP | |
| UV/IR Protection | DIN13 | DIN13 | |
| Test | No | Yes | |
| Low Battery | No | Yes | |
| Grinding | No | Yes | |
| Cuting | No | No | |
| LED | No | No | |

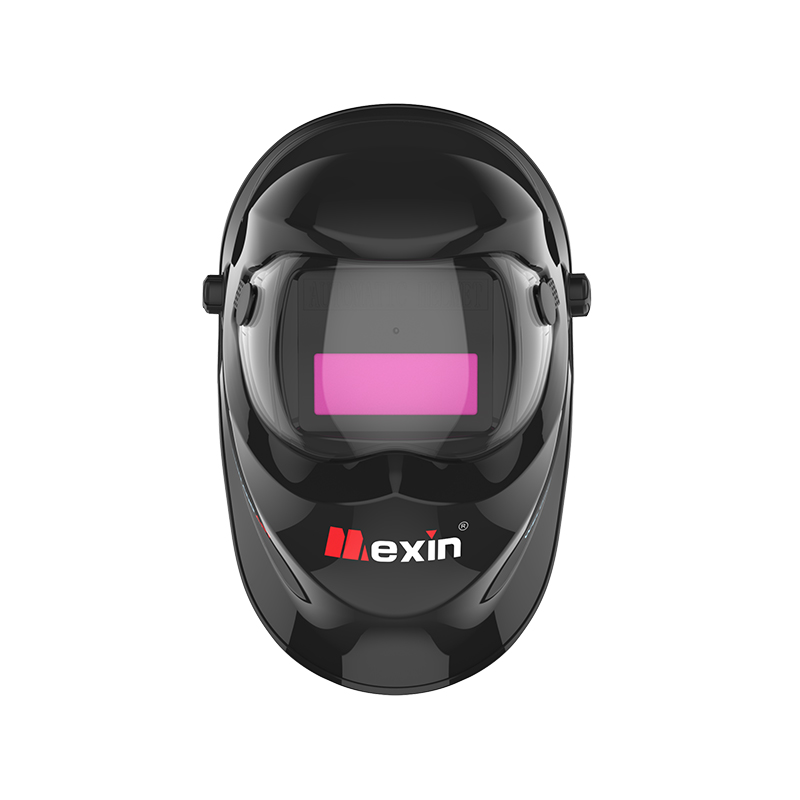

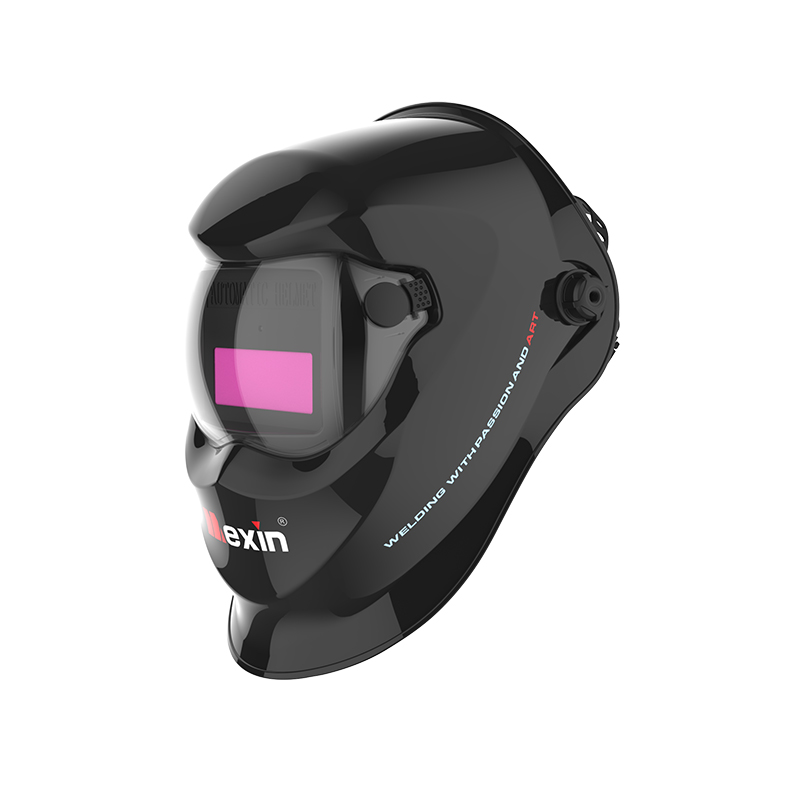

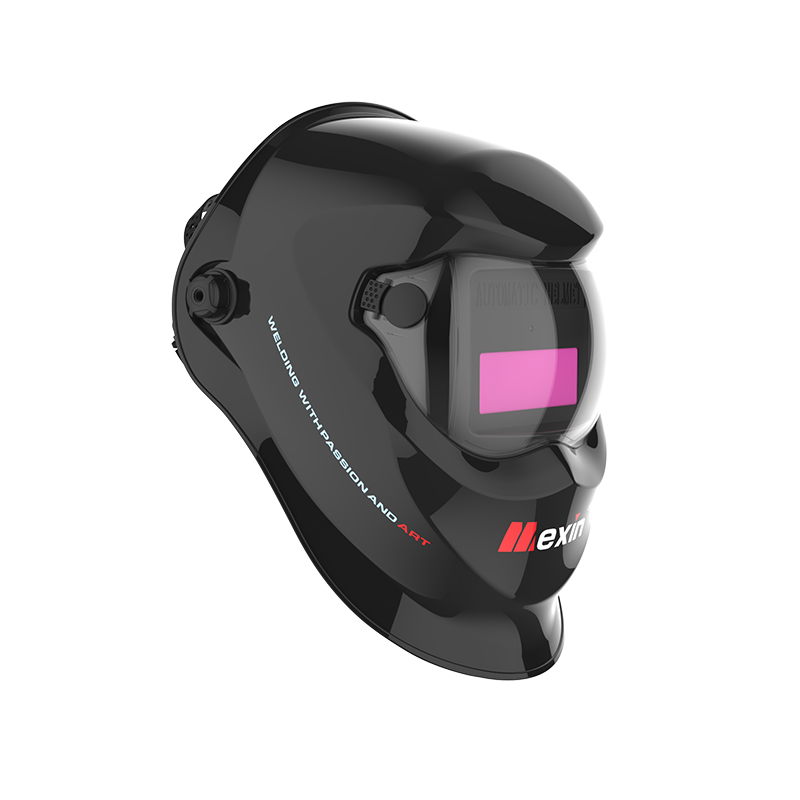

Comfortable and Lightweight Welding Helmet：Adjustable headgear for maximum comfort.High-impact resistance material, lightweight and durable.
Shade Range 9-13：For most welding applications, convenient and fast.
Pivot Headgear Design：Adjustable pivot headgear, well-balanced design, maximum comfortable feelings, lock function in upright state.
Advantages
MMA
MIG / MAG
TIG
FLUX-CORED
PACKAGING & SHIPPING
1) Wrap the welding helmet in a plastic bag
2) Put the manual into the color box
3) Put the welding helmet wrapped in plastic bag into the color box
4) Put 6pcs of welding helmet in color boxes into the master carton
5) Sealing and packing（740×490×345mm）
Note: This packing method takes up a large space. But you don’t need to assemble them after receiving the goods, and the surface of the product is less scratched.
1) The face shield and headgear of the welding helmet
2) Wrap the face shield of welding helmet in a plastic bag
3) Place 20pcs of color boxes flat at the bottom of the master carton
4) Put 20pcs of manuals into the master carton
5) Put 20pcs of face shields and headgears of the welding helmet into the master carton
6) Sealing and packing（725×485×430mm）
Note: This packing method saves space. But after receiving the goods, you need to assemble the headgear with the face shield yourself, and due to the friction between the face shields during transportation, there may be some scratches on the surface of the product.
1) The face shield and headgear of the welding helmet
2) Wrap the face shield of welding helmet in a plastic bag
3) Put 20pcs of manuals into the master carton
4) Put 20pcs of face shields and headgears of the welding helmet into the master carton
5) Sealing and packing（580×520×410mm）
Note：This packing method has fewer color boxes than packing method B
