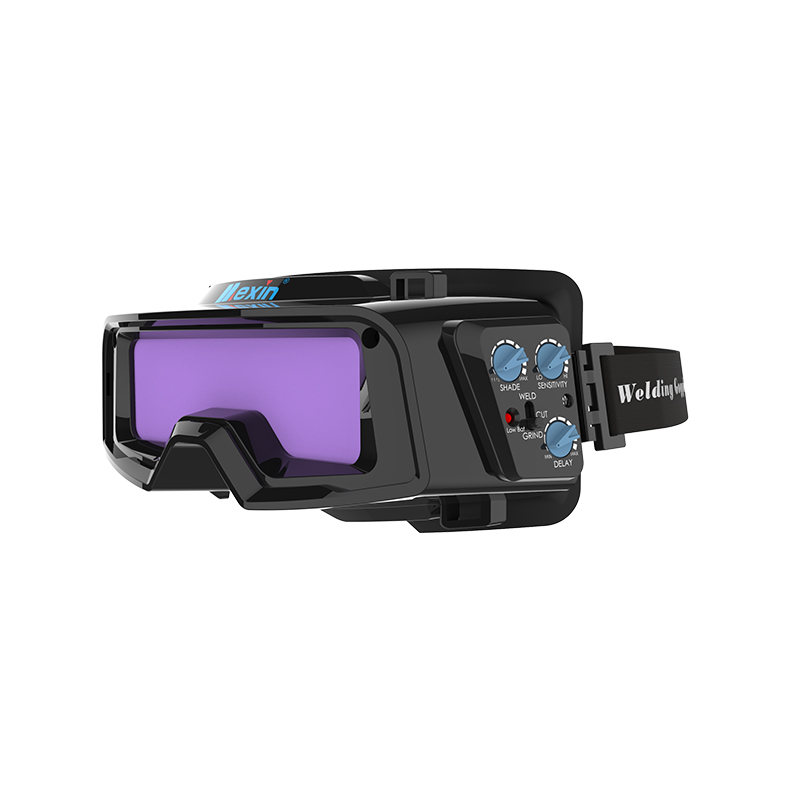

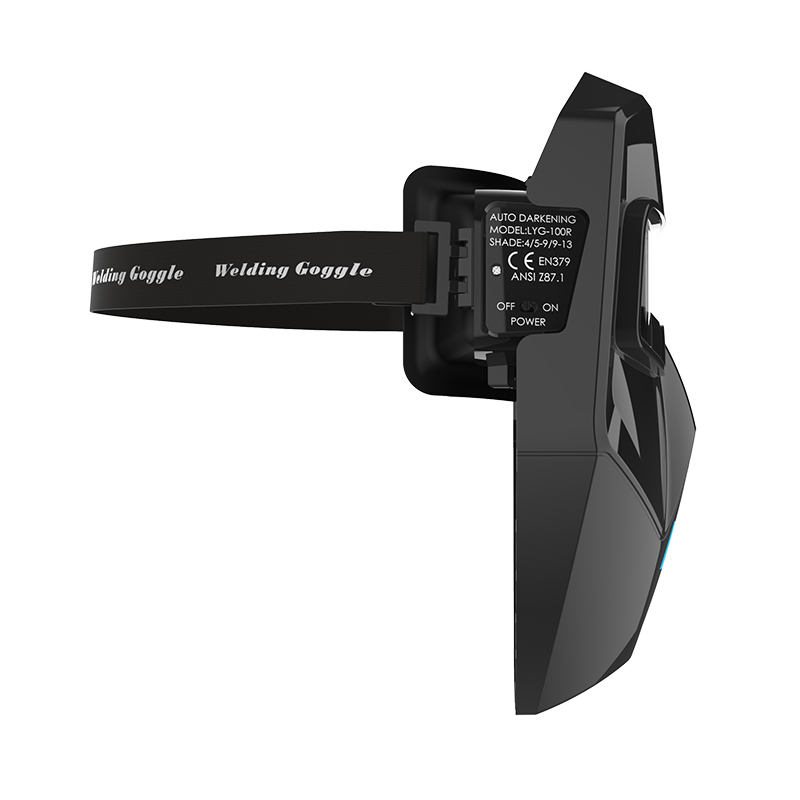

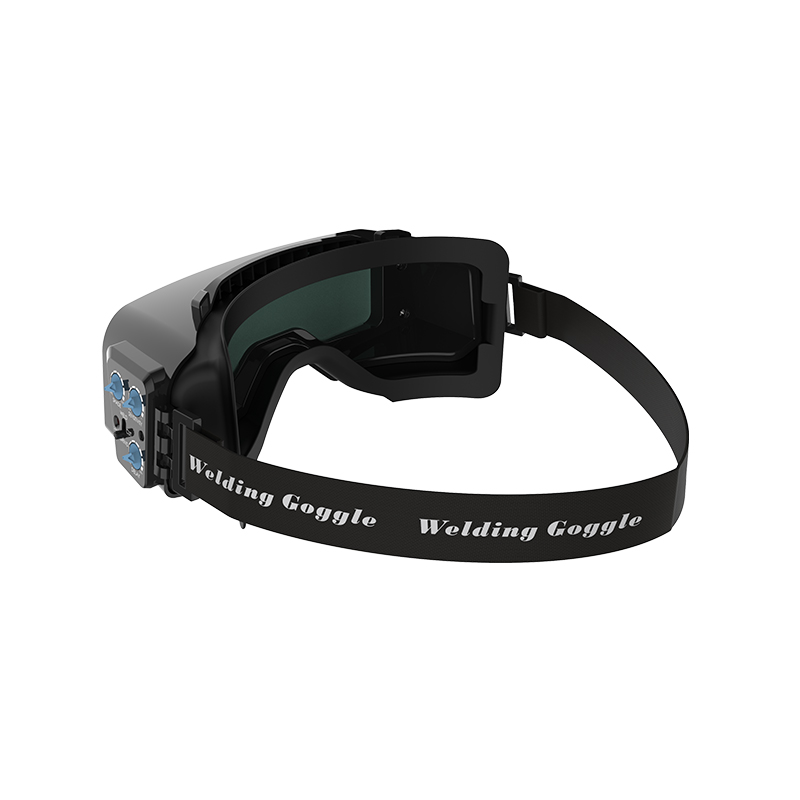

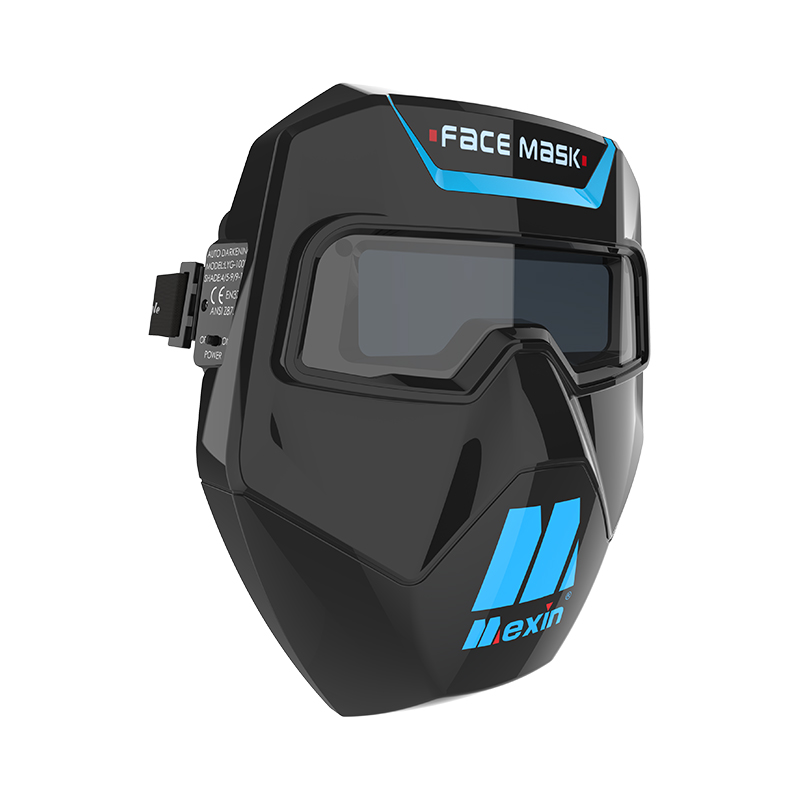

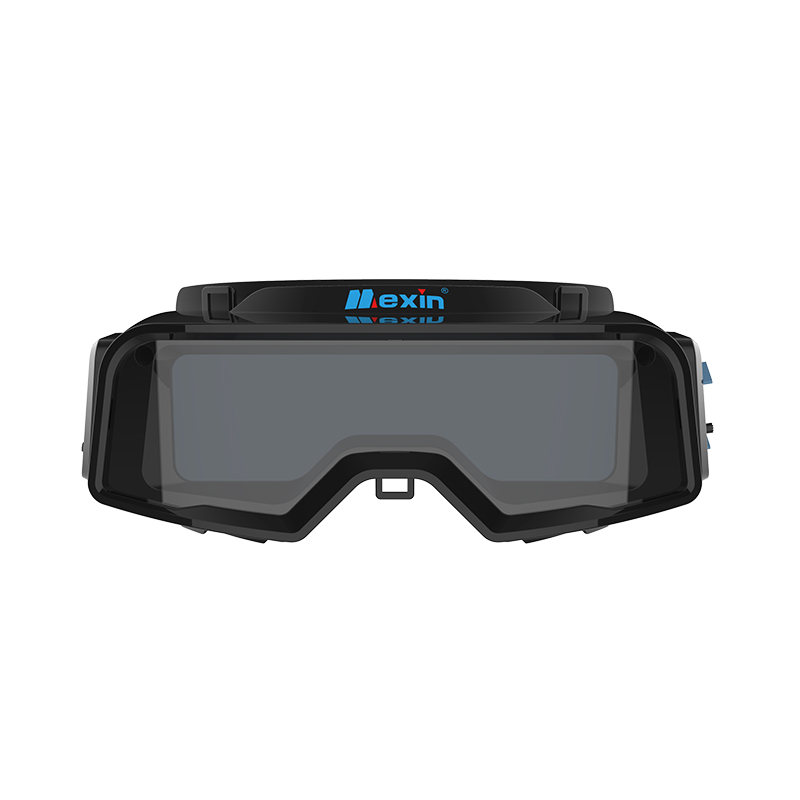

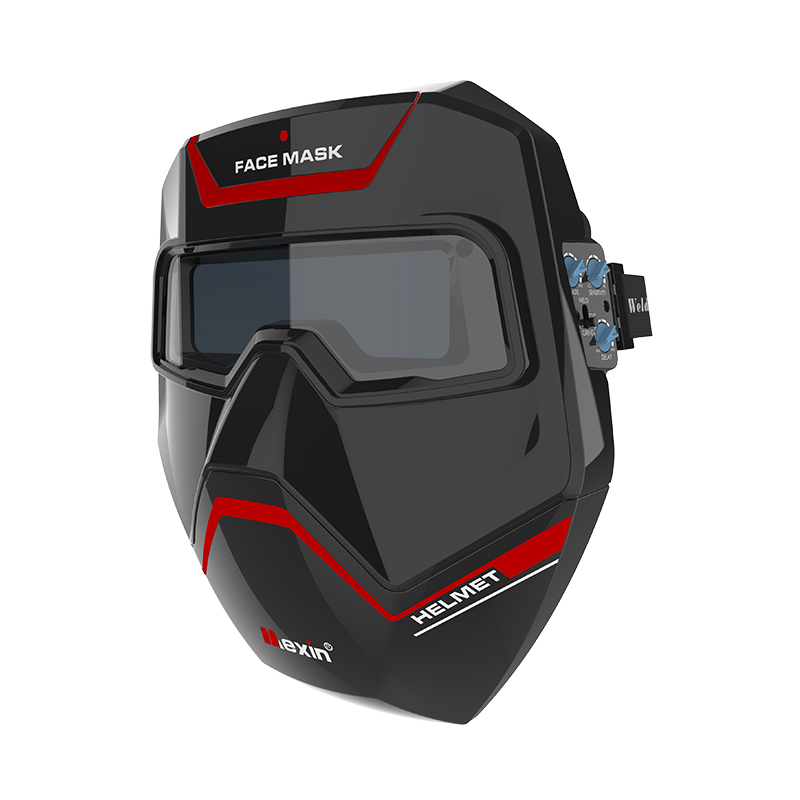

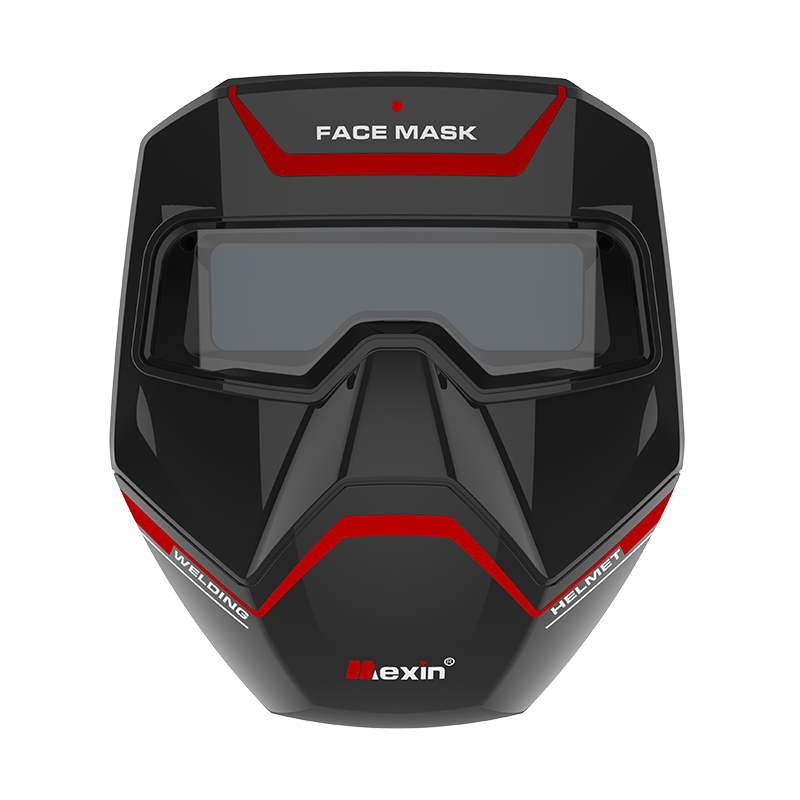

LYG-0R-100R
1.Easy to Wear and Operate
2.Shade / Sensitivity / Delay Time Stepless Adjustment
3.Battery Replaceable for Longer Life
4.Alien window design, more comfortable for the nose.

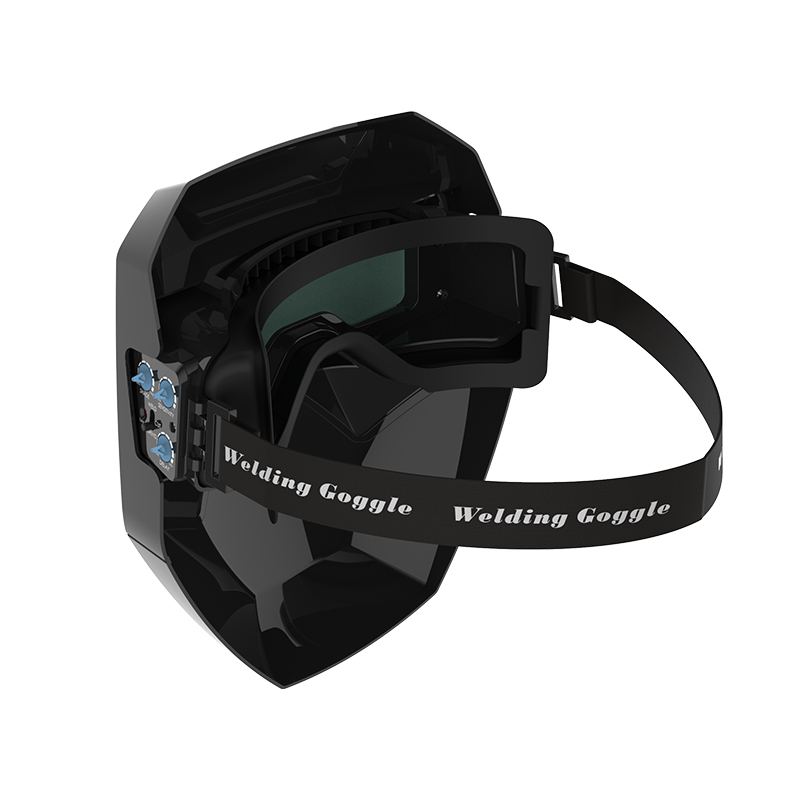

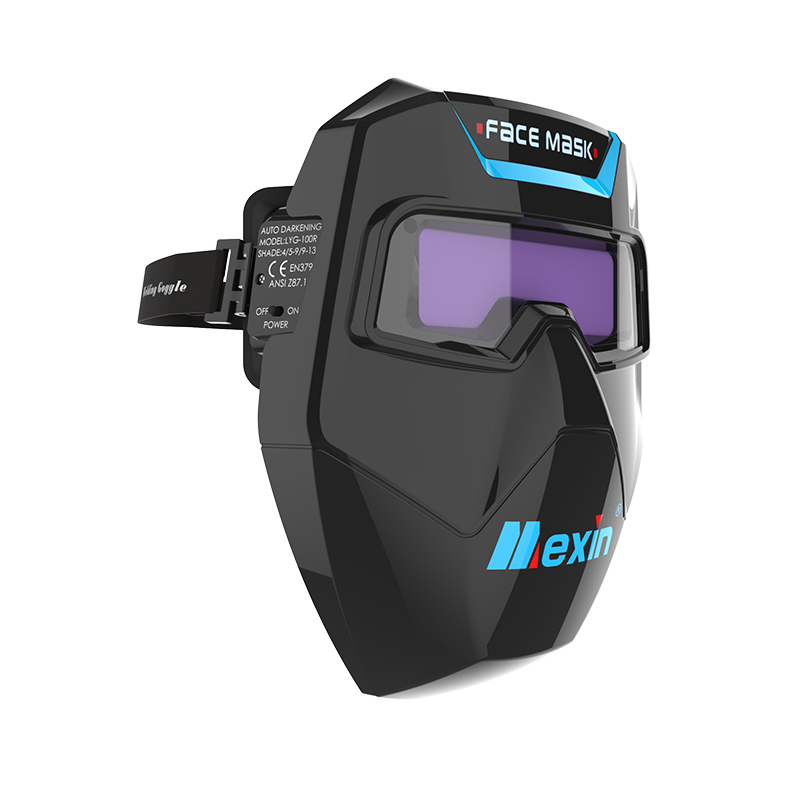

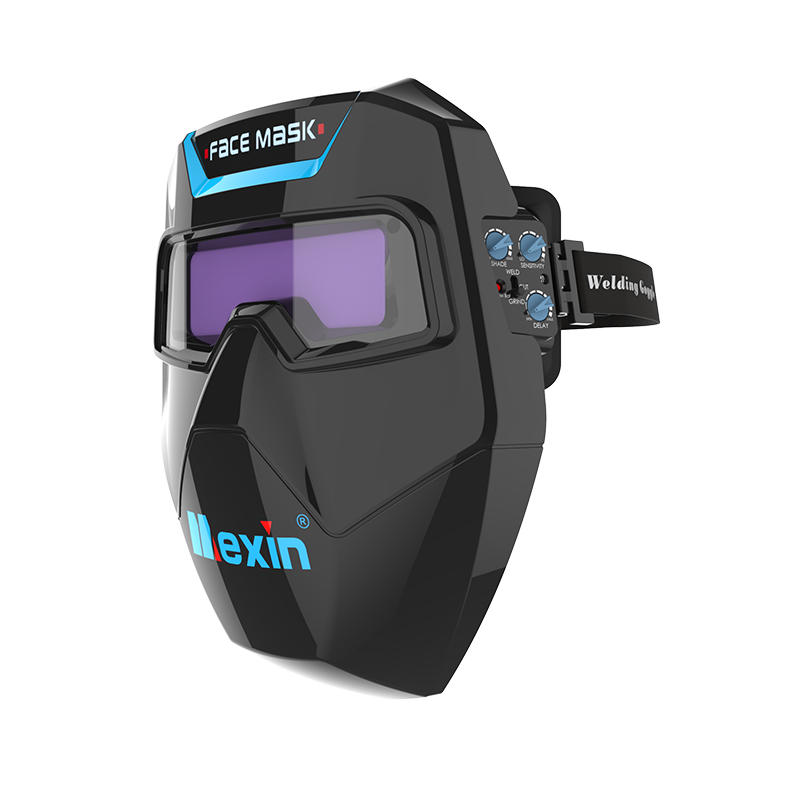

5.Silicone is used for skin contact part, more comfortable
6.Full Face and Front of Neck Protection
2.Shade / Sensitivity / Delay Time Stepless Adjustment
3.Battery Replaceable for Longer Life
4.Alien window design, more comfortable for the nose.
5.Silicone is used for skin contact part, more comfortable
6.Full Face and Front of Neck Protection
Get a Free Quote Now
Details
ADF Model | LY100R | |
|---|---|---|
| Optical Class | 1/1/1/3 | |
| Cartridege Size | 190.5mm×77.5mm×76.25mm | |
| Viewing Area | 122.5mm×35mm ( 4.82” x 1.38” ) | |
| Light State | DIN3.5 | |
| Dark State | DIN5～9/9～13 | |
| Shade Control | External & Stepless | |
| Switching Time | 3/10000S±20% | |
| Sensitivity Control | External & Stepless | |
| Delay Time | 0.1S～1S | |
| Power Supply | Li-battery | |
| Rated Capacity Of Li-Battery | 60mAh | |
| Replaceable Battery | Yes | |
| Operating Temp. | -5℃～55℃ | |
| Storing Temp. | -20℃～70℃ | |
| Arc Sensor | 2 | |
| Low Amperage TIG Rated | ≥30amps | |
| Helmet Material | SBR+ABS | |
| UV/IR Protection | DIN13 | |
| Test | No | |
| Low Battery | Yes | |
| Grinding | Yes | |
| Cuting | Yes | |
Premium Arc Sensors：This product builds two arc sensors inside, each sensor can work independently and detect welding arcs easily.The arc sensor focuses on the welding arcs without any interference from surroundings.

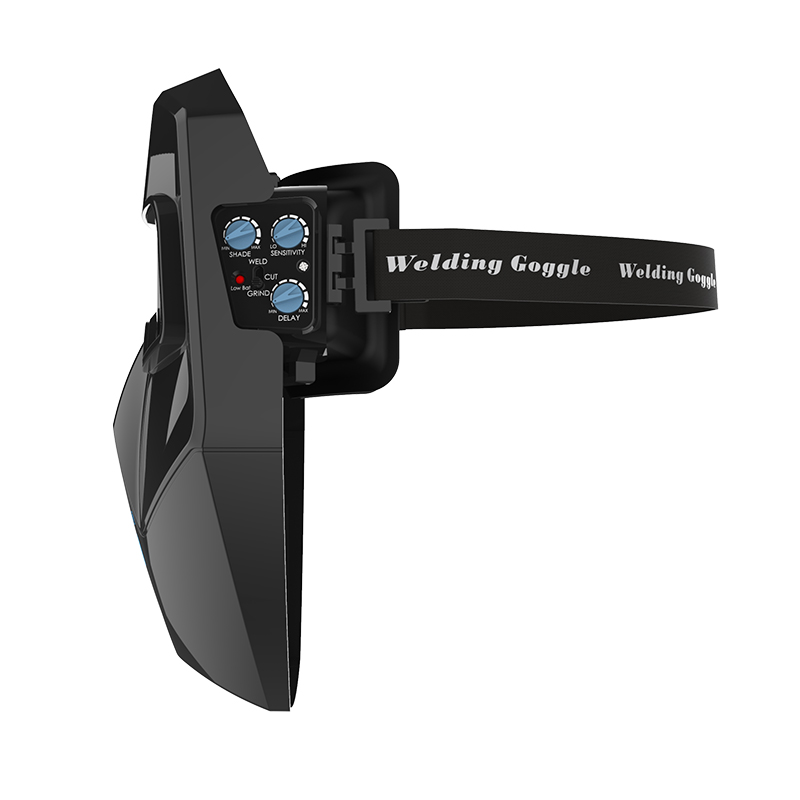

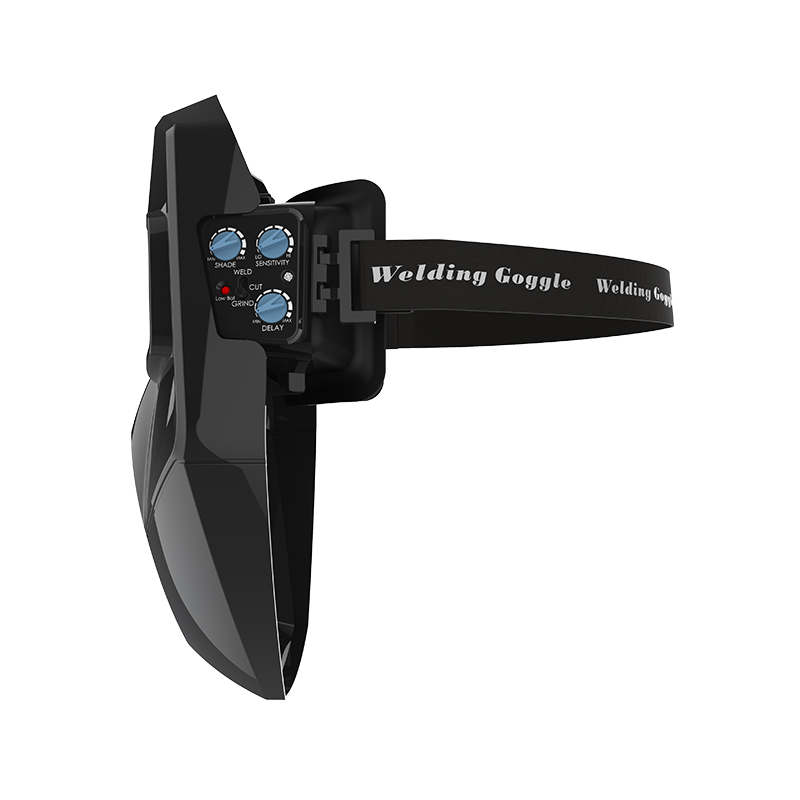

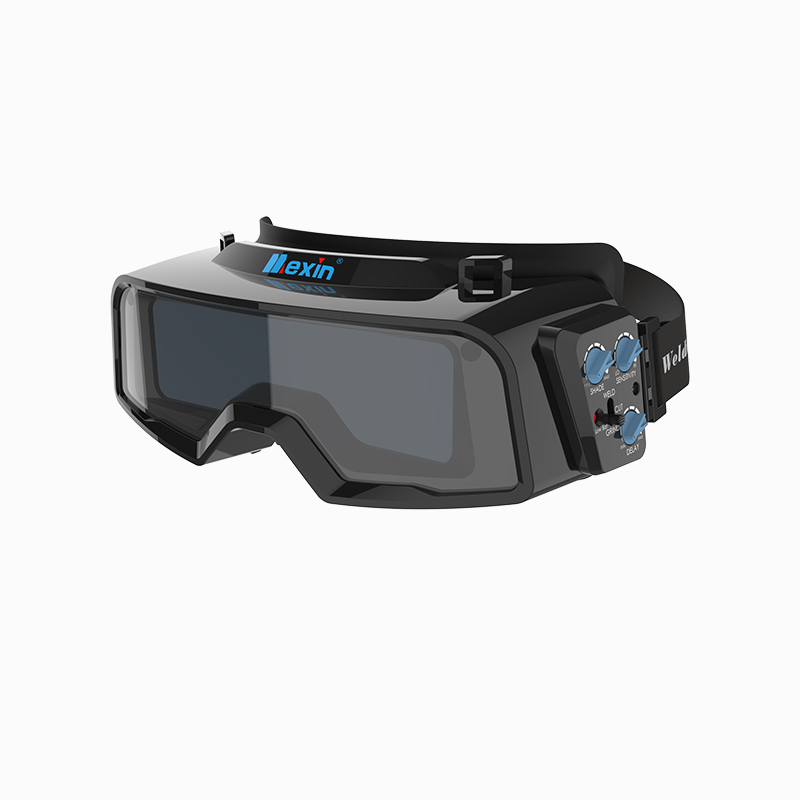

Shade/Sensitivity/Delay Time Stepless Adjustment：Knob design with clear interface, you can easily adjust control knob to achieve shade, delay time from 0.1 to 0.8 seconds, sensitivity from low to high level.
Shade Range 5-9/9-13：For most welding/cutting applications, also including grinding mode.
Well-adapted：With 2 independent sensors, allows users to weld in complex environment.
Recommend Auto Darkening Filter
PACKAGING & SHIPPING
1) Wrap the glasses in a plastic bag
2) Put the manual into the color box
3) Put the glasses wrapped in plastic bag into the color box
3) Put 50Pcs of glasses in color boxes into the master carton
