Details
ADF Model | LY800D | LY800F | |
|---|---|---|---|
| Optical Class | 1/1/1/2 or 1/1/1/1 | 1/1/1/2 or 1/1/1/1 | |
| Cartridege | 133mm×114mm×10mm | 133mm×114mm×10mm | |
| Viewing Area | 100×83mm(3.94"×3.27") | 100×93mm(3.94"×3.66") | |
| Light State | DIN3.5 | DIN3.5 | |
| Dark State | DIN5~9/9 ~13 | DIN5~9/9 ~13 | |
| Shade Control | External & Stepless | External & Stepless | |
| Switching Time | 1/10000S +_20% or 1/25000S+_20% | 1/10000S +_20% or 1/25000S+_20% | |
| Sensitivity Control | Internal & Stepless | External & Stepless | |
| Delay Time | 0.1S～1S | 0.1S / 0.4S / 1S | |
| Power Supply | Li-battery & Solar | Li-battery & Solar | |
| Rated Capacity Of Li-Battery | 600mAh | 600mAh | |
| Replaceable Battery | Yes | Yes | |
| Operating Temp. | -5℃～55℃ | -5℃～55℃ | |
| Storing Temp. | -20℃～70℃ | -20℃～70℃ | |
| Arc Sensor | 4 | 4 | |
| Low Amperage TIG Rated | ≥5amps | ≥5amps | |
| Helmet Material | PA or PP | PA or PP | |
| UV/IR Protection | DIN13 | DIN13 | |
| Test | Yes | Yes | |
| Low Battery | Yes | Yes | |
| Grinding | Yes | Yes | |
| Cuting | Yes | Yes | |
| LED | No | No | |
Premium Arc Sensors：This product builds four arc sensors inside, each sensor can work independently and detect welding arcs easily.The arc sensor focuses on the welding arcs without any interference from surroundings.

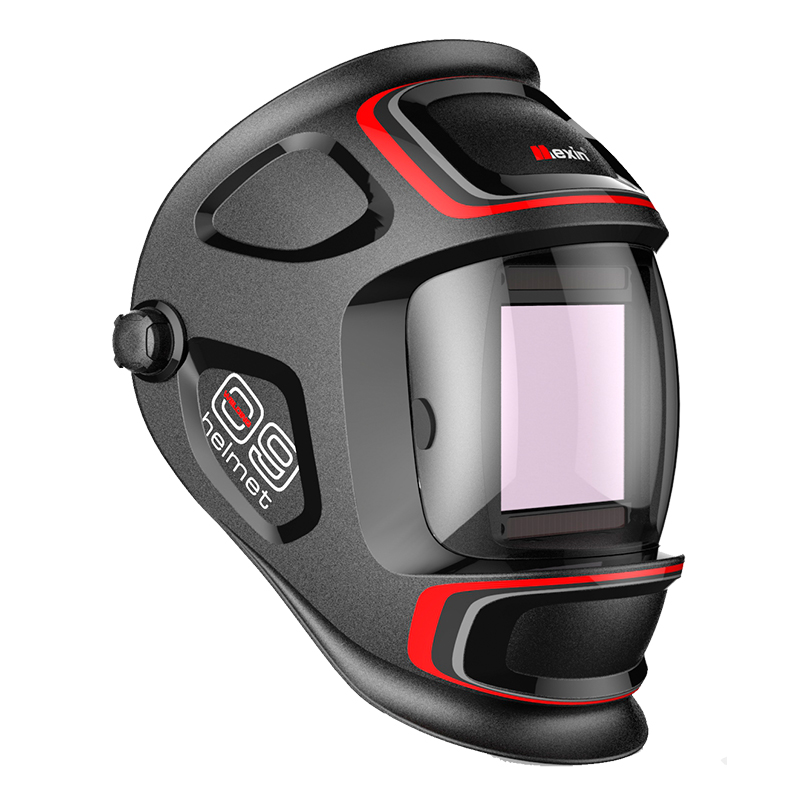

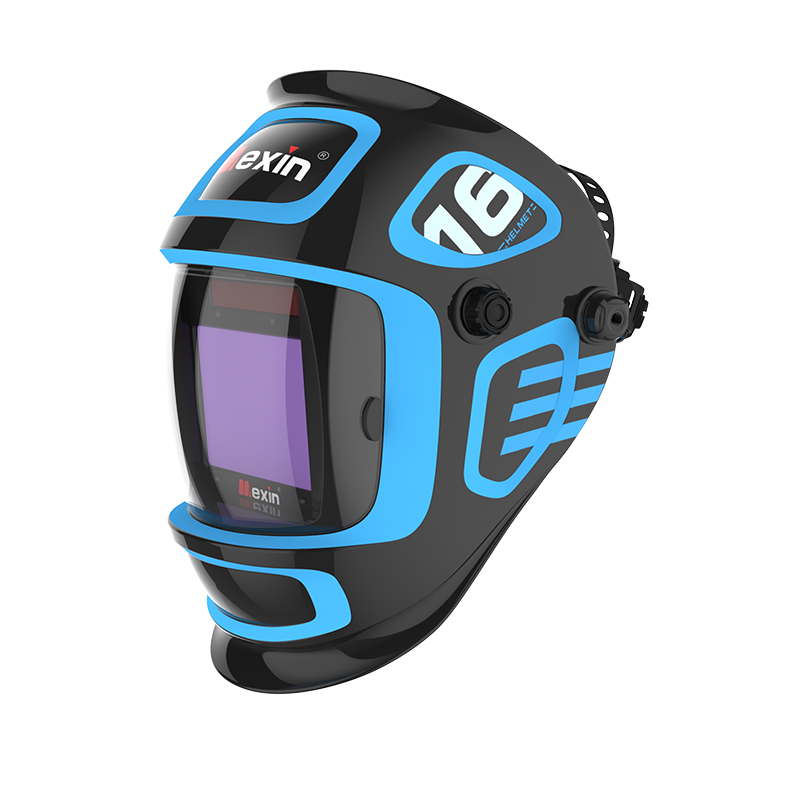

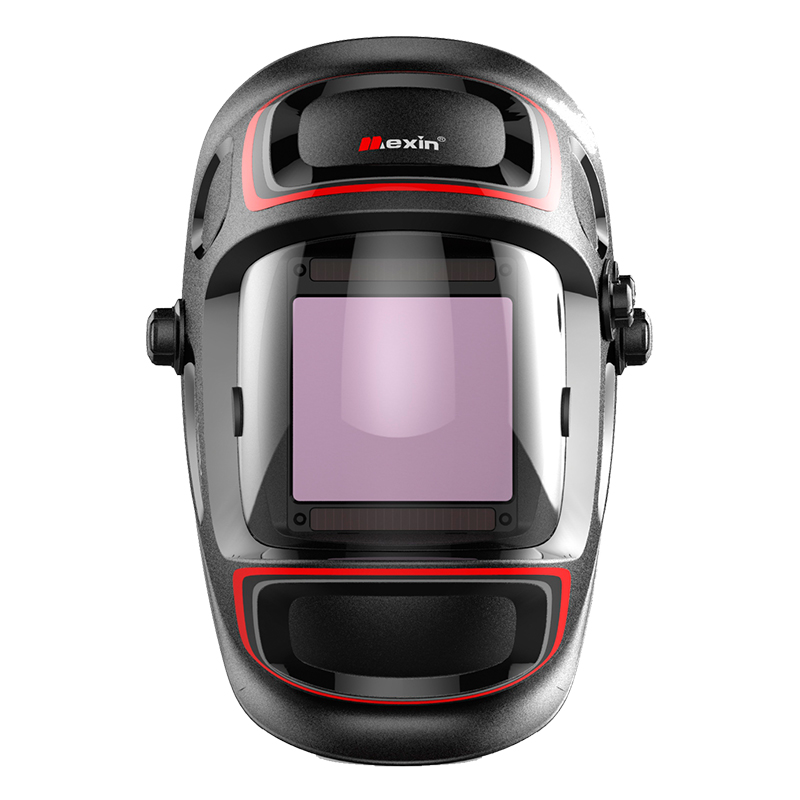

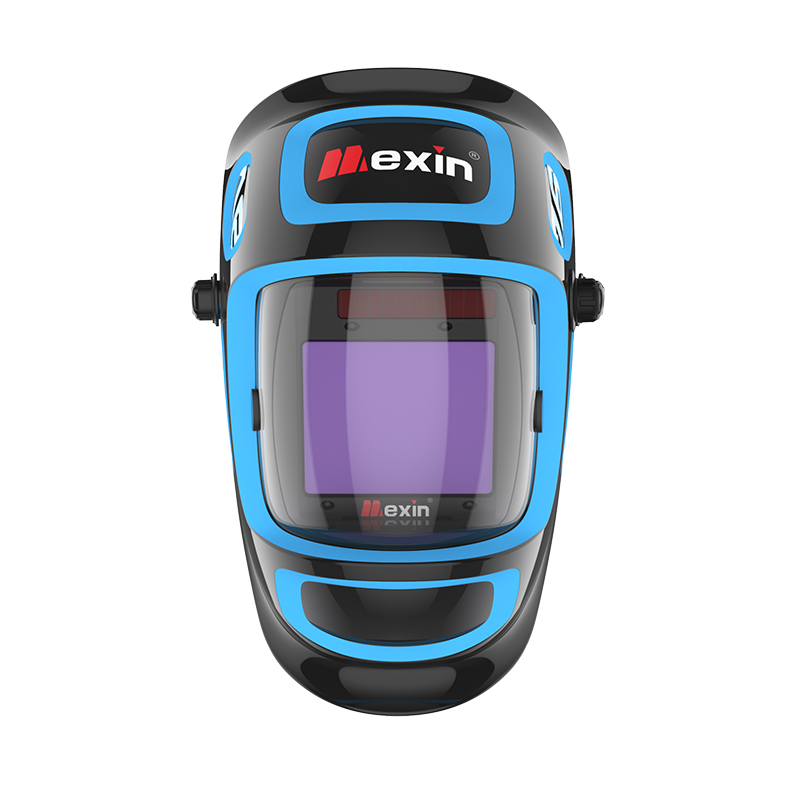

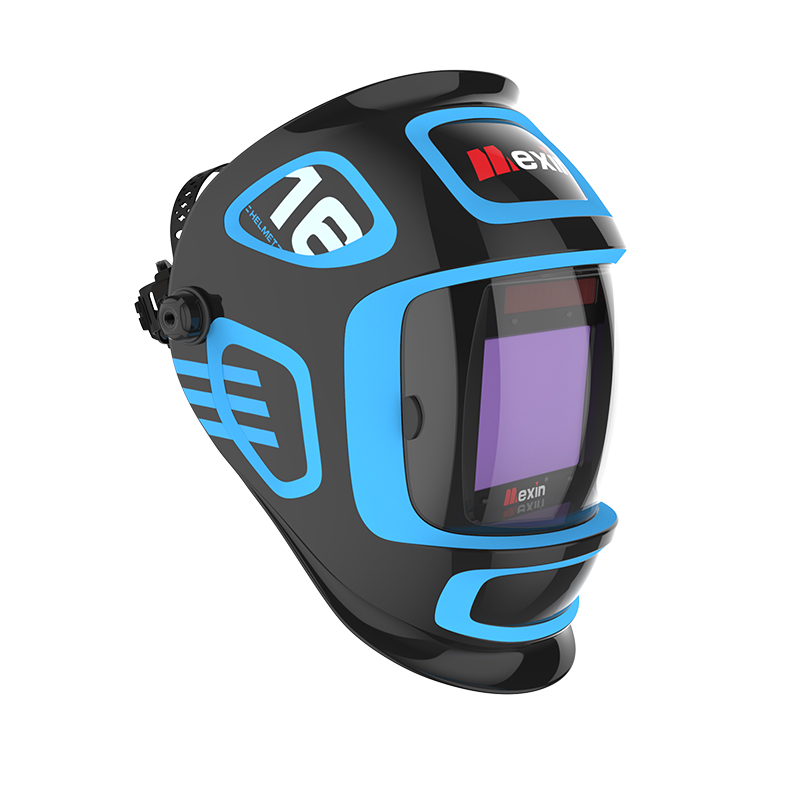

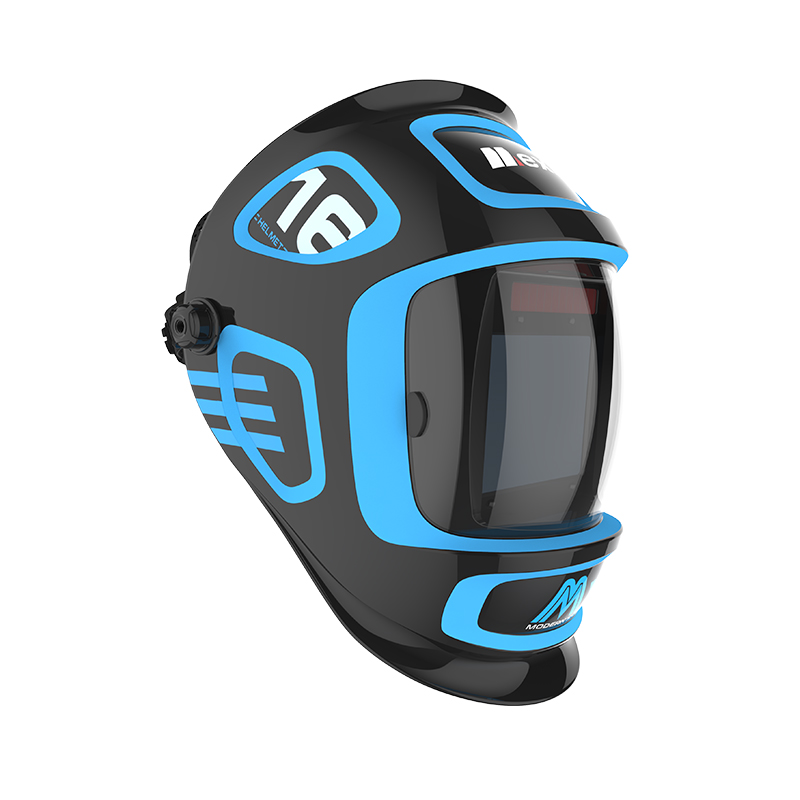

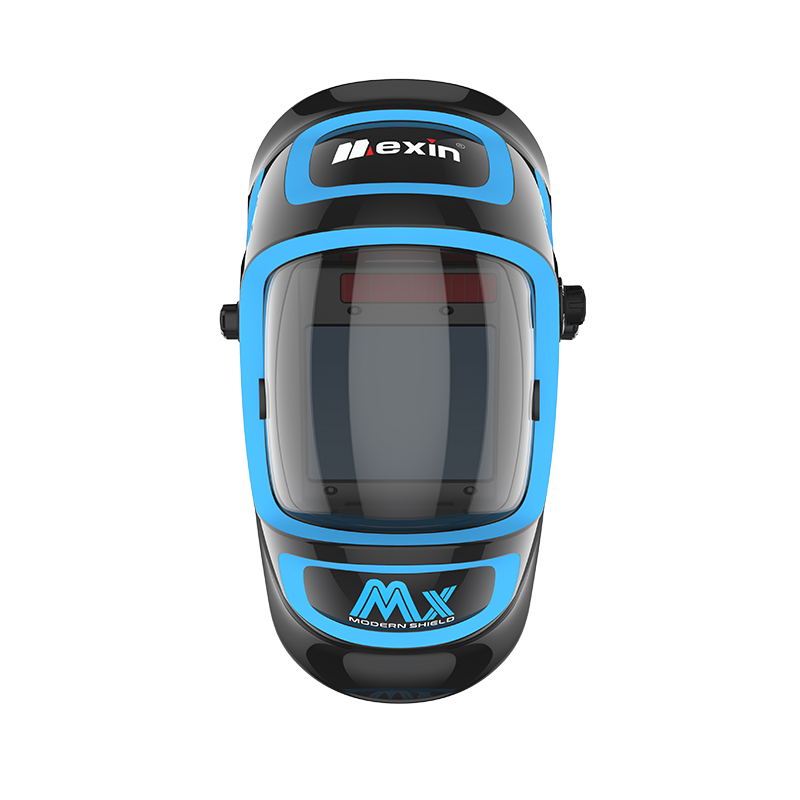

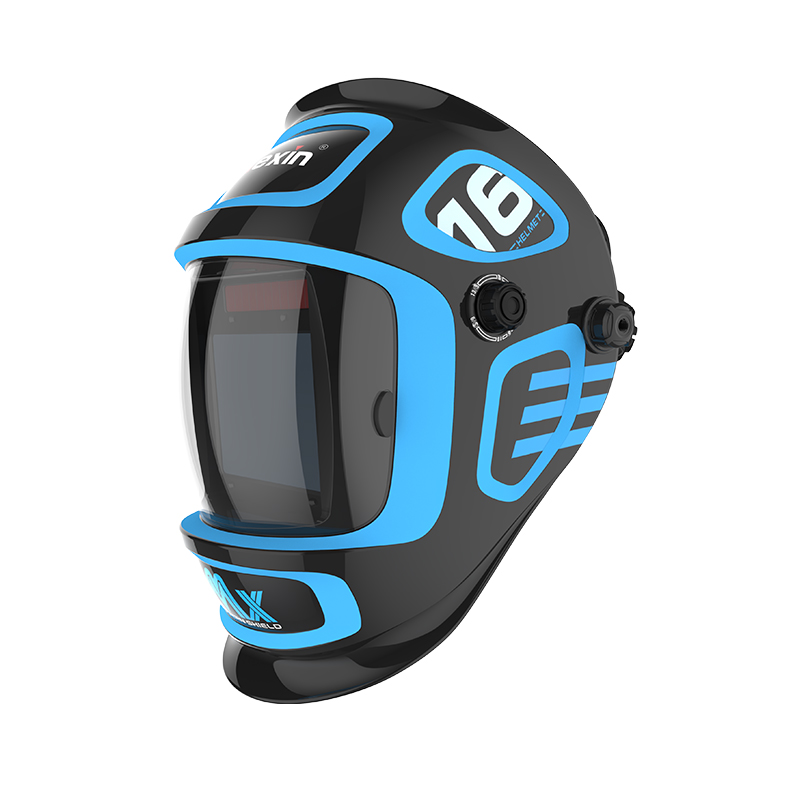

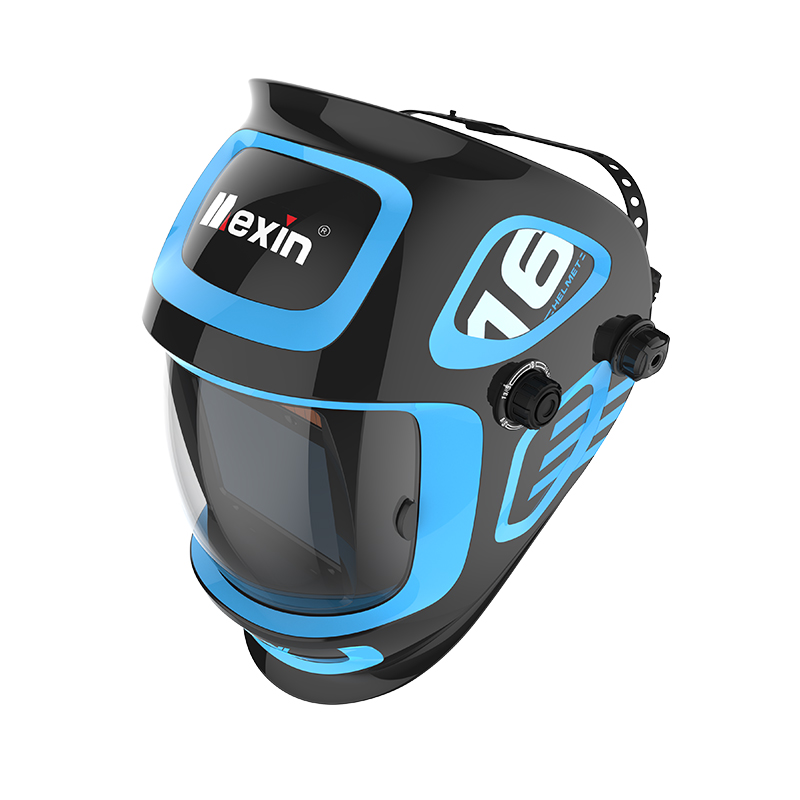

Comfortable and Lightweight Welding Helmet：Adjustable headgear for maximum comfort.High-impact resistance material, lightweight and durable.

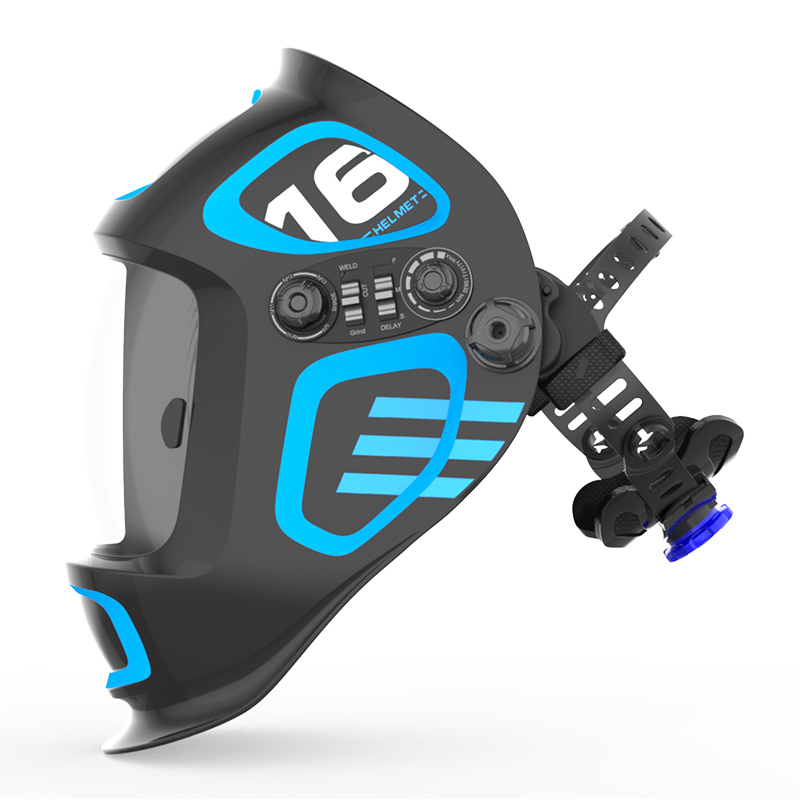

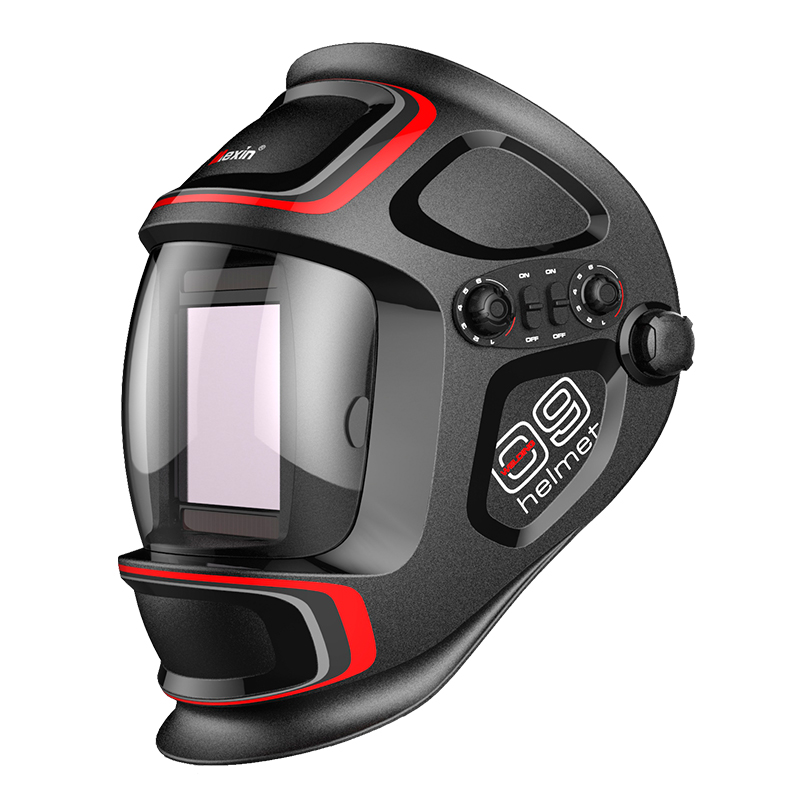

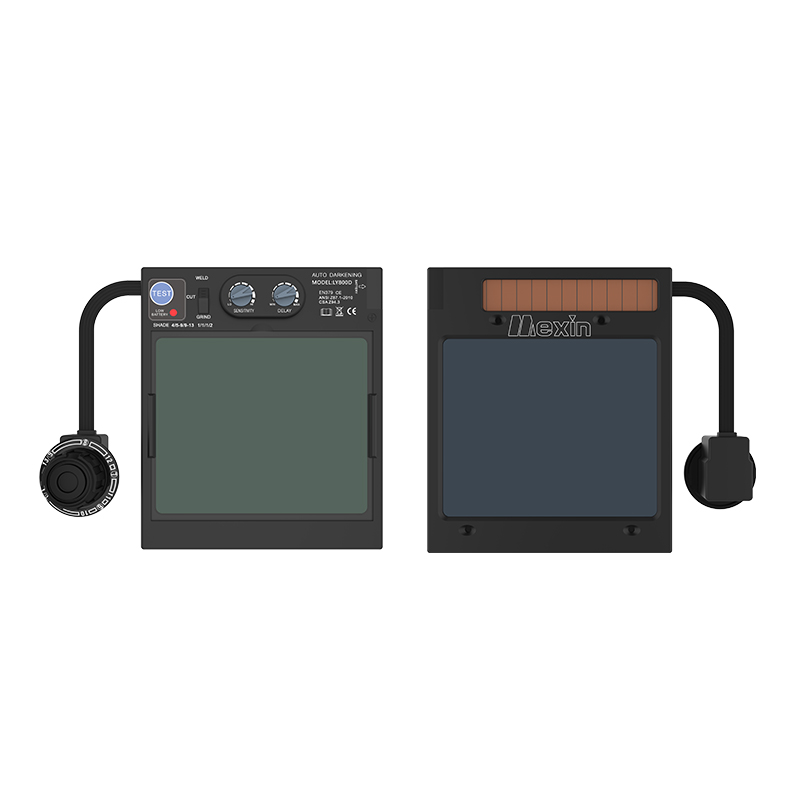

Shade/Sensitivity/Delay Time Stepless Adjustment：Knob design with clear interface, you can easily adjust control knob to achieve shade, delay time from 0.1 to 1 seconds, sensitivity from low to high level.
Shade Range 5-9/9-13：For most welding/cutting applications, also including grinding mode.

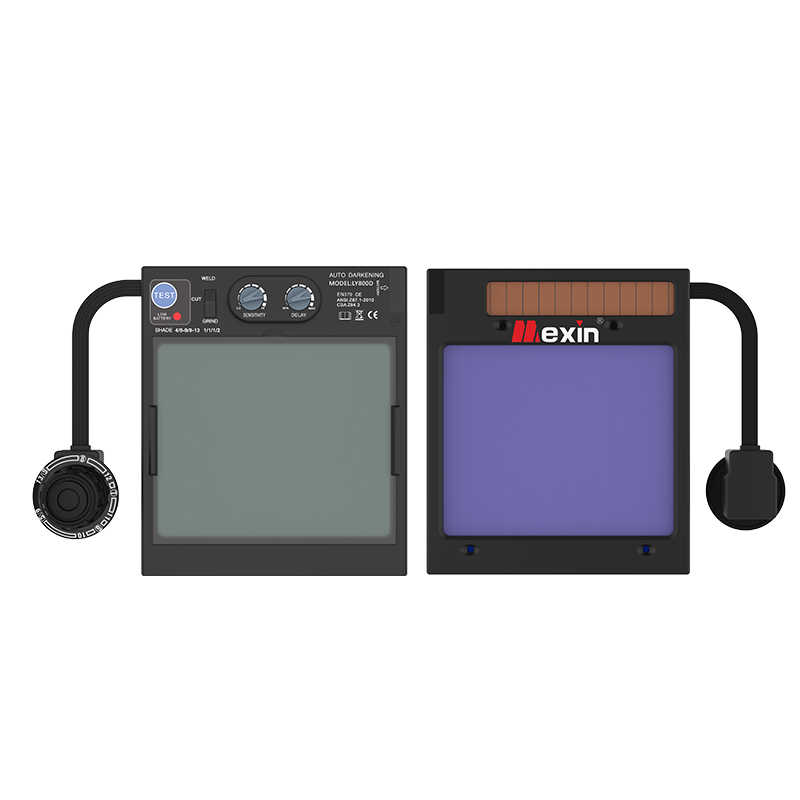

Highest Optical Class 1/1/1/1：Top quality ADF lens, optical class: 1/1/1/1, which can provide ultra-clear view and best protection for users’ eyes.
Advantages
MMA
MIG / MAG
TIG
FLUX-CORED
PLASMA
GRIND
PACKAGING & SHIPPING
1) Wrap the welding helmet in a plastic bag
2) Put the manual into the color box
3) Put the welding helmet wrapped in plastic bag into the color box
4) Put 6pcs of welding helmet in color boxes into the master carton
5) Sealing and packing（740×490×345mm）
Note: This packing method takes up a large space. But you don’t need to assemble them after receiving the goods, and the surface of the product is less scratched.
1) The face shield and headgear of the welding helmet
2) Wrap the face shield of welding helmet in a plastic bag
3) Place 20pcs of color boxes flat at the bottom of the master carton
4) Put 20pcs of manuals into the master carton
5) Put 20pcs of face shields and headgears of the welding helmet into the master carton
6) Sealing and packing（725×485×430mm）
Note: This packing method saves space. But after receiving the goods, you need to assemble the headgear with the face shield yourself, and due to the friction between the face shields during transportation, there may be some scratches on the surface of the product.
1) The face shield and headgear of the welding helmet
2) Wrap the face shield of welding helmet in a plastic bag
3) Put 20pcs of manuals into the master carton
4) Put 20pcs of face shields and headgears of the welding helmet into the master carton
5) Sealing and packing（580×520×410mm）
Note：This packing method has fewer color boxes than packing method B
