LYG-27-4000

1.Shade / Sensitivity / Delay Time Stepless Adjustment
2.Popular window size 92.5mm*42.5mm with 2 Premium Sensors
3.Low Amperage TIG Rated ≥5 amps DC(AC)
4.Flip Front Design
Get a Free Quote Now

Details

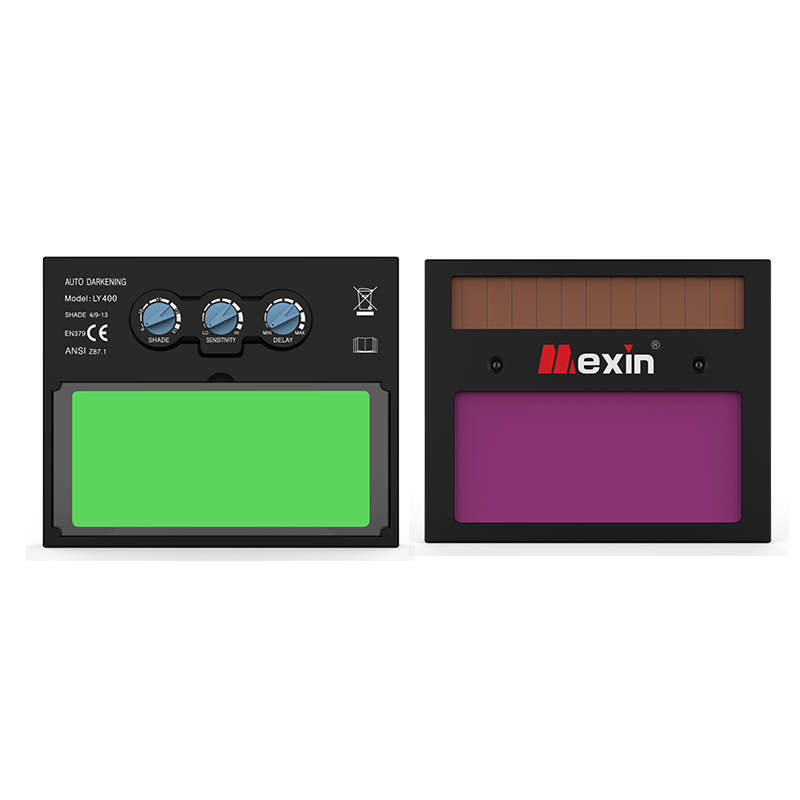

ADF Model
LY400
LY200H
Optical Class1/1/1/2 or 1/1/1/11/1/1/2 or 1/1/1/1
Cartridege110mm×90mm×9mm110mm×90mm×9mm
Viewing Area92.5×42.5mm(3.64"×1.67")90×34mm(3.54"×1.34")
Light StateDIN3DIN3.5
Dark StateDIN9~13DIN11
Shade Control Internal & Stepless No
Switching Time3/10000S±20%3/10000S±20%
Sensitivity ControlInternal & SteplessNo
Delay Time0.1S~1S0.2S
Power SupplyLi-battery & SolarLi-battery & Solar
Rated Capacity Of Li-Battery600mAh210mAh
Replaceable BatteryNoNo
Operating Temp.-5℃~55℃-5℃~55℃
Storing Temp.-20℃~70℃-20℃~70℃
Arc Sensor22
Low Amperage TIG Rated≥5amps≥5amps
Helmet MaterialPA or PPPA or PP
UV/IR ProtectionDIN13DIN11
TestNoNo
Low BatteryNoNo
GrindingNoNo
CutingNoNo
LEDNoNo
Premium Arc Sensors:This product builds two arc sensors inside, each sensor can work independently and detect welding arcs easily.The arc sensor focuses on the welding arcs without any interference from surroundings.
Comfortable and Lightweight Welding Helmet:Adjustable headgear for maximum comfort.High-impact resistance material, lightweight and durable.
Shade/Sensitivity/Delay Time Stepless Adjustment:Knob design with clear interface, you can easily adjust control knob to achieve shade, delay time from 0.1 to 1 seconds, sensitivity from low to high level.
Pivot Headgear Design:Adjustable pivot headgear, well-balanced design, maximum comfortable feelings, lock function in upright state.

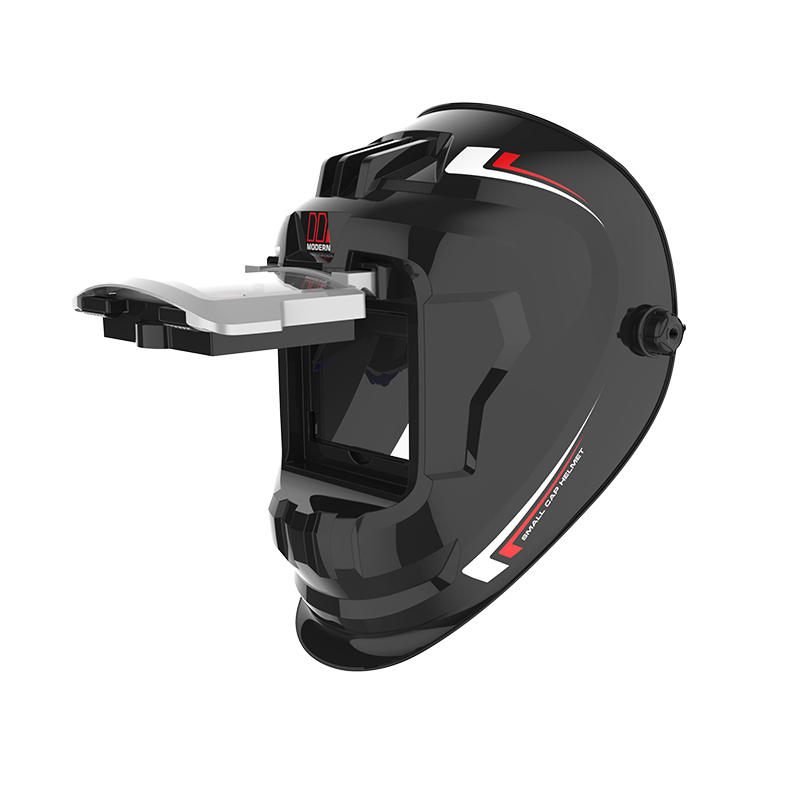

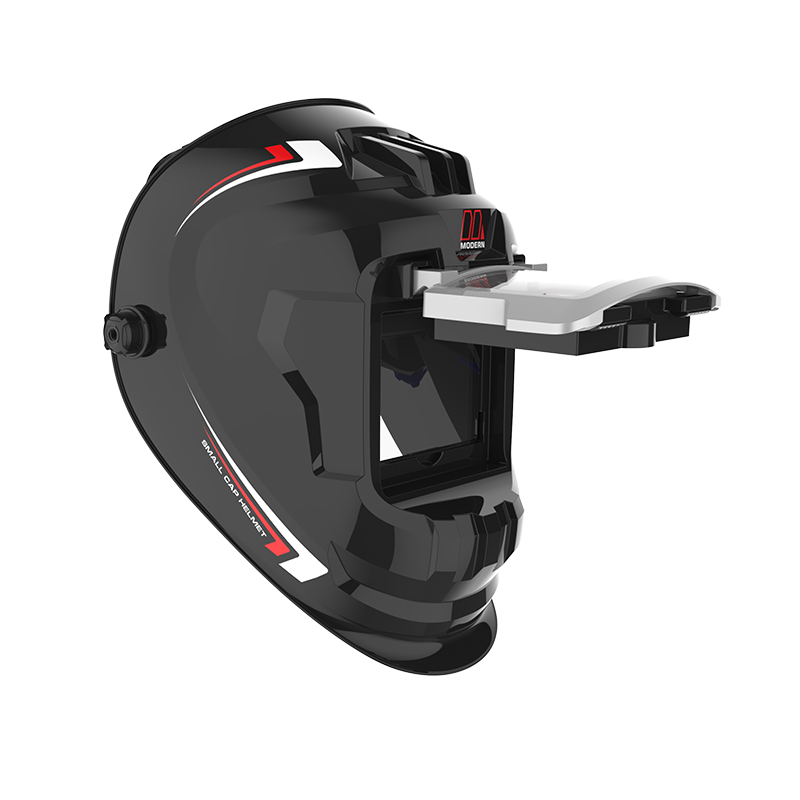

Flip up Design:Easy to lift up for grinding function, safer and clearer.

Advantages

MMA

MIG / MAG

TIG

FLUX-CORED

GRIND

Recommend Auto Darkening Filter

PACKAGING & SHIPPING

1) Wrap the welding helmet in a plastic bag

2) Put the manual into the color box

3) Put the welding helmet wrapped in plastic bag into the color box

4) Put 6pcs of welding helmet in color boxes into the master carton

5) Sealing and packing(740×490×345mm)

Note: This packing method takes up a large space. But you don’t need to assemble them after receiving the goods, and the surface of the product is less scratched.

1) The face shield and headgear of the welding helmet

2) Wrap the face shield of welding helmet in a plastic bag

3) Place 20pcs of color boxes flat at the bottom of the master carton

4) Put 20pcs of manuals into the master carton

5) Put 20pcs of face shields and headgears of the welding helmet into the master carton

6) Sealing and packing(725×485×430mm)

Note: This packing method saves space. But after receiving the goods, you need to assemble the headgear with the face shield yourself, and due to the friction between the face shields during transportation, there may be some scratches on the surface of the product.

1) The face shield and headgear of the welding helmet

2) Wrap the face shield of welding helmet in a plastic bag

3) Put 20pcs of manuals into the master carton

4) Put 20pcs of face shields and headgears of the welding helmet into the master carton

5) Sealing and packing(580×520×410mm)

Note:This packing method has fewer color boxes than packing method B
